Give Your Mold a “Diamond Armor” – A Quick Guide to China’s PVD Coating Scene
1. What is PVD and why is every tool-room talking about it?
Physical Vapor Deposition (PVD) grows a 1–11 µm nano-scale armor on mold surfaces by bombarding them with metal vapor and plasma inside a vacuum chamber.
Because the process stays below 500 °C—lower than the tempering temperature of most tool steels—there is virtually zero dimensional change or softening
.
2. Four mainstream PVD processes in China
| Process | Typical Coating | Hardness | Heat Resistance | Friction Coefficient | Mold Applications |
|---|---|---|---|---|---|
| Cathodic Arc Ion Plating | TiN | HV 2300 | 600 °C | 0.4 | Injection molding, blanking |
| Magnetron Sputtering | TiAlN/AlTiN | HV 2800–3200 | 800–1000 °C | 0.3–0.4 | Die casting, hot forging |
| Hybrid Thick Film | ViOLA-S (AlCrN + nitriding) | 24 GPa ≈ HV 2400 | 800 °C | 0.5 | ADC12 aluminum die casting, wash-out resistant |
| Low-temperature DLC | ta-C | HV 4000 | 400 °C | 0.1–0.2 | High-gloss plastics, lubricant-free release |
3. Real-life life-span boosts
- 30 % glass-filled PP
S136 core insert showed flash after 80 k shots; with TiAlN it ran > 220 k shots before the first polish, OEE ↑ 38 %. - ADC12 die-casting
A 9 µm AlCrN + plasma-nitrided hybrid reduced wash-out rate from 0.45 g/100 h to 0.1 g, giving a 3× life jump. - Cu-alloy (BeCu) optical lens mold
Special TiN-BeCu recipe kept thermal conductivity intact while scratch resistance ×5, cosmetic reject rate < 0.3 %.
4. China’s PVD supply chain map (2025)
- Equipment
Guangdong (Huicheng, Kehui), Jiangsu (Xishan, Shenyao) and Guizhou (Hangrui) mass-produce unbalanced magnetron + pulse-bias coaters that can hold a 2 t automotive panel mold per batch. - Service
The Yangtze River Delta and Pearl River Delta now host “24-hour express coating” plants: deliver before lunch, get the tool back next morning. Price sheet: TiN 0.8-1.2 RMB/cm²; thick-film AlCrN 1.5-2.0 RMB/cm². - Compliance
Zero waste water, zero heavy metals; RoHS, REACH and FDA cleared in one pass—no extra paperwork for EU/US exports.
5. How to pick the right coating for your mold?
- Temperature window
Hot-work > 700 °C → AlTiN, ViOLA-S; cold-work < 400 °C → DLC, TiCN. - Mold material

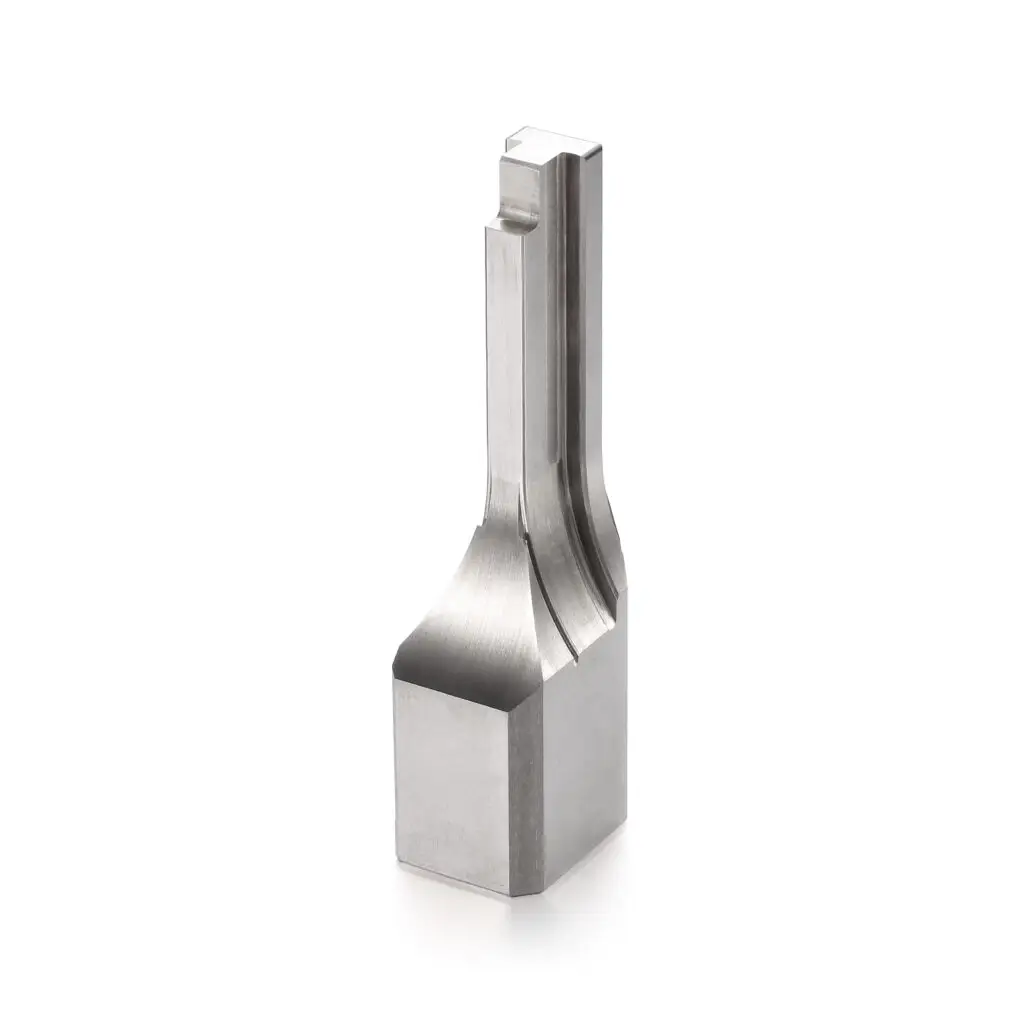

Cu-alloy mirror finish → TiN-BeCu; high-strength steel punches → TiCN + mirror polish. - Failure mode
Soldering + wash-out → thick hybrid + nitriding; sticking → low-surface-energy DLC. - Lead-time
Standard 1-2 days; deep-cavity or oversized tools need early fixturing discussion.
6. Three trends to watch (2026-2028)
- AI closed loop: real-time optical emission spectroscopy adjusts arc current every 5 s, holding thickness tolerance ±0.1 µm.
- Green factory: 100 % renewable electricity + carbon tracing, < 0.02 g CO₂/cm².
- Price erosion: domestic target material scale-up predicted to cut cost 15-20 % by 2026, turning PVD into a “standard process” rather than a premium option.
7. One-sentence takeaway
When cycle times shrink, melt temperatures rise and glass-fiber ratios get “crazy”, PVD coating is China’s cheapest power-up—spend 1 % of mold cost, gain 300 % life and slash defect rates in one shot.
Need a quick trial?
Send your steel grade, hardness, cavity depth and failure photos to a local coating center; samples in 24 h, coated mold back in 48 h. Let the data prove what “diamond armor” can do!
